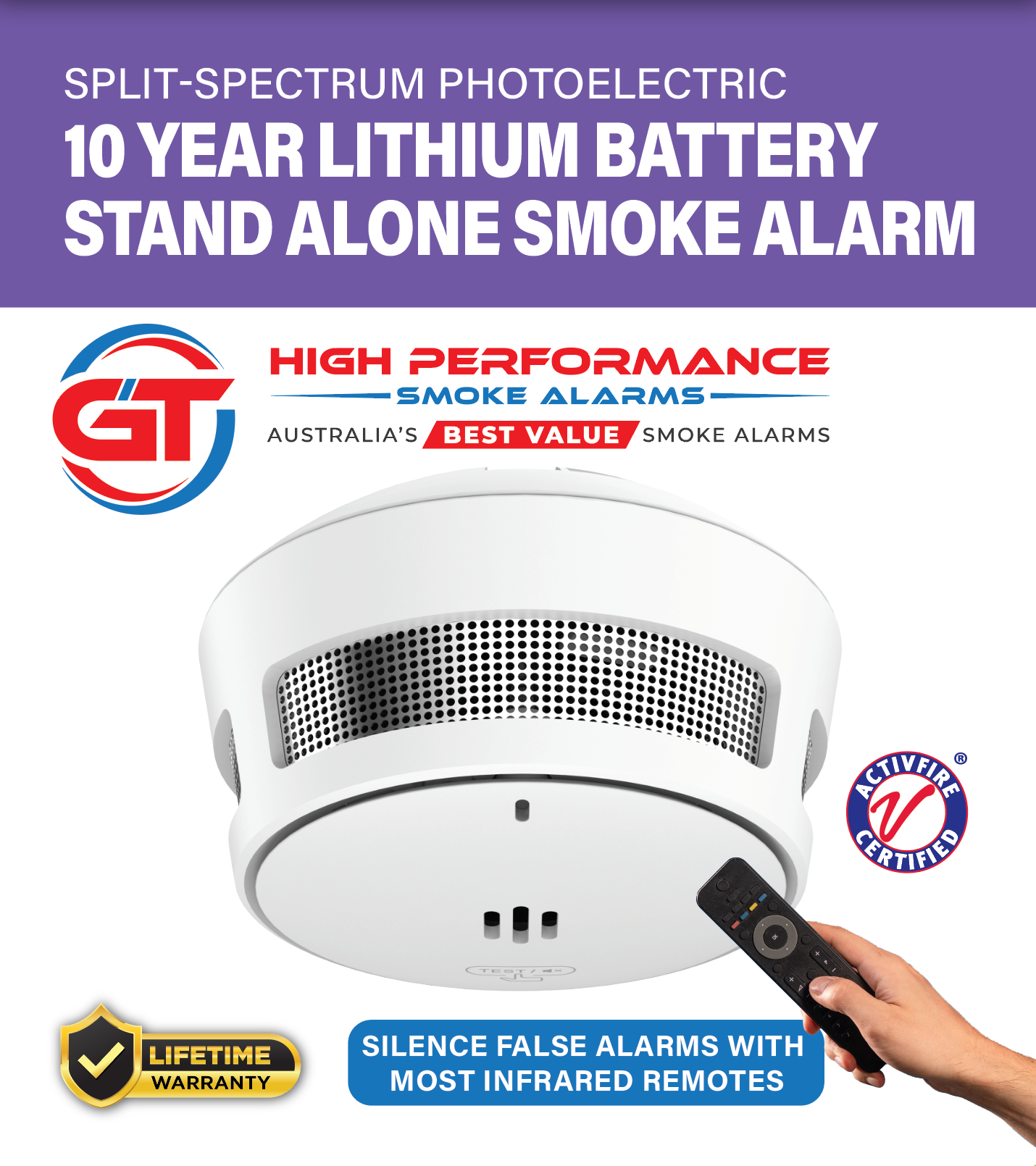

GT High Performance 10 year Photoelectric sealed lithium battery standalone smoke alarm
$29.95 + GST
You never need to change the battery and no electrician required for installation!
GT High Performance smoke alarms incorporate our unique split spectrum technology with not one – but two smoke sensors. A traditional photoelectric sensor and a second blue LED sensor to detect different particle sizes in the air. These two sensors are capable of recognising the difference between smoke, dust and vapour. The combination of sensors means the alarm is better able to reduce false alarms that were previously caused by things like steam, dust and humidity. Field testing has shown that the GT split spectrum technology can reduce false alarms from vapour and dust by 99%.
Specifications
Working Principle | |
Collection Type |
Smoke |
Sampling Period |
9 s |
Sensor Type |
Photoelectric |
Alarm |
|
Alarm Type |
Smoke alarm, fault warning, low battery warning |
Alarm Volume |
85dB (A) at 3 m (9.84 ft) |
Alarm Mode |
Visual and audible alarm |
Silencing Function |
Yes |
Silence Duration |
9 min |
Infrared Silence |
Yes |
Alarm Response Threshold |
0.2dB/m-0.3dB/m |
Basic Parameters |
|
Indicator Light |
Alarm, fault and operation indicator |
LED Instructions |
Standby: Green indicator flashes once per minute |
Coverage Area |
When the height of the space is less than 8 m (26.25 ft), the protection area of a device is 20 m2–40 m2 |
Power Supply |
|
Battery Life |
10 years |
Power Source |
3V CR123A lithium battery (non-replaceable) |
Operating Current |
Monitoring current: ≤ 15uA (avg.) Alarm current: ≤ 35mA (avg.) |
Operating Ambient |
|
Operating Environment |
Indoor |
Operating Temperature |
-10°C to +55°C (+14°F to +131°F) |
Operating Humidity |
≤ 95% RH (non condensing) |
Appearance |
|
Color |
White |
Casing |
PC+ABS |
Dimensions |
φ81.5 mm × H51.6 mm (φ3.21″ × H2.03″) |
Weight |
110 g (0.24 lb) |
Installation |
Ceiling Mount |
Certification | |
Certifications |
AS 3786:2014 |
Compliance Standard |
EN 14604:2005+AC:2008 |
Downloads
click here to download the User manual.
click here to download the Brochure.
click here to download the Datasheet.
